Precision CNC Machining
West Values has the capability to machine high precision components from steel bar stock and a variety of raw materials including Aluminum, Copper Alloys, Stainless Steel and Mild Steel. West Values machined components are maintaining critical surface finish values, well achieving close dimensional tolerances. Please take a look below at our inhouse capability for CNC and VMC machines operations.

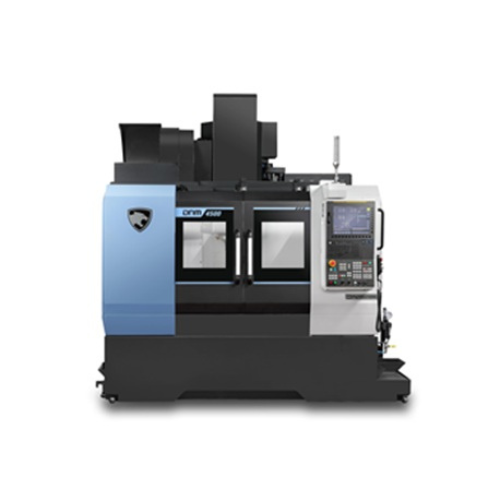

VERTICAL MACHINING CENTERS
- Model/Make : DNM 4500/DOOSAN/2025
- Travel X/Y/Z Axis : 800/450/510 (MM)
- Table Size : 1000/450 (MM)
- Number of Tools : 30 Nos. (ATC)
- Spindle Speed : 8000 (RPM)
- FANUC, TSC Coolant - 19 Bar @ 50 Hz
- Spindle Torque : 286 NM
VERTICAL MACHINING CENTERS
- Model/Make : 540 V/ACE Micromatic / 2024
- Travel X/Y/Z Axis : 500/400/450 (MM)
- Table Size : 750 X 400 (MM)
- Number of Tools : 24 Nos. (ATC)
- Spindle Speed : Upto 12000 (RPM)

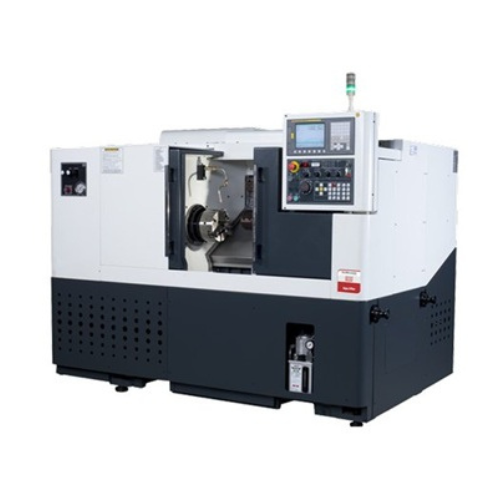

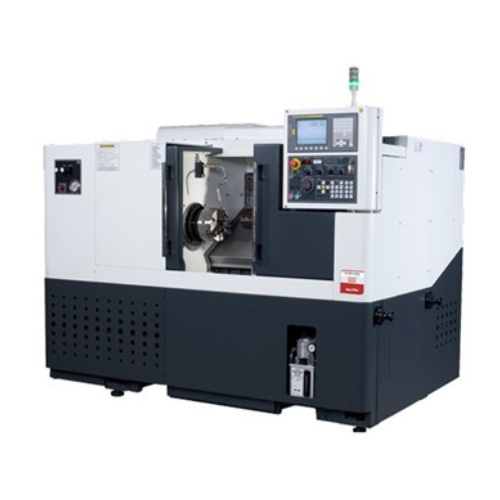

CNC TURNING CENTERS (M/C #3)
- Model/Make : Super Jobber 500 /ACE/2024
- Max Turning Dia : 350 MM
- Max Turning Length : 500 MM
- Max Spindle Speed : 3500 RPM
- Max Boring Dia : 40 MM
- Number of Tools : 8 Stations
CNC TURNING CENTERS (M/C #4)
- Model/Make : Super Jobber 500/ACE/ 2024
- Max Turning Dia : 350 MM
- Max Turning Length : 500 MM
- Max Spindle Speed : 3500 RPM
- Max Boring Dia : 40 MM
- Number of Tools : 8 Stations

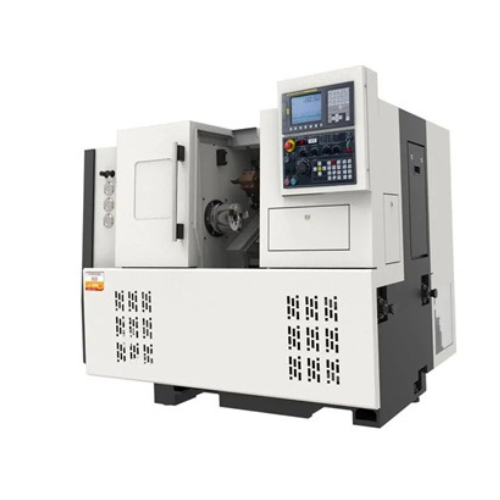

CNC TURNING CENTERS (M/C #5)
- Model/Make : Jobber 300 LM /ACE/ 2024
- Max Turning Dia : 320 MM
- Max Turning Length: 300 MM
- Max Spindle Speed: 4000 RPM
- Max Boring Dia : 40 MM
- Number of Tools : 8 Stations

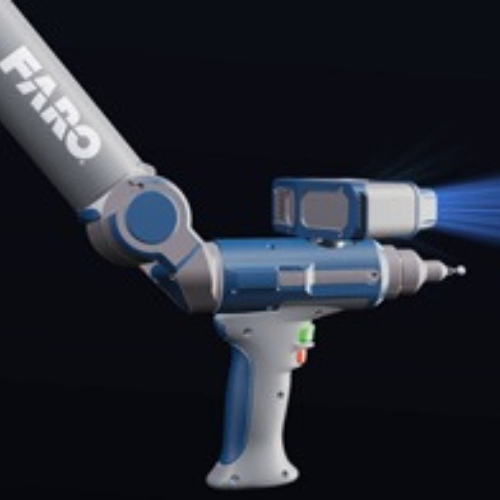

FARO ARM QUANTUM XE
- Model / Make : 7th Generation / 2025
- Metrrology Device with 7th - Axis
- FARO ARM Reach Up to 3 Meter
- i PROBES : 3MM / 6MM
- Portables CMM for Industrial Applications
- Highest Probing Accuarcy : 0.00 09''
